Industrial Bag Filter Housing

An Industrial Bag Filter Housing is a pressure vessel designed to hold and support filter bags for the filtration of liquids. It is used to remove suspended solids, contaminants, and impurities from process fluids in various industrial applications. The housing provides a secure, leak-proof environment that allows efficient filtration while ensuring easy bag replacement and maintenance.

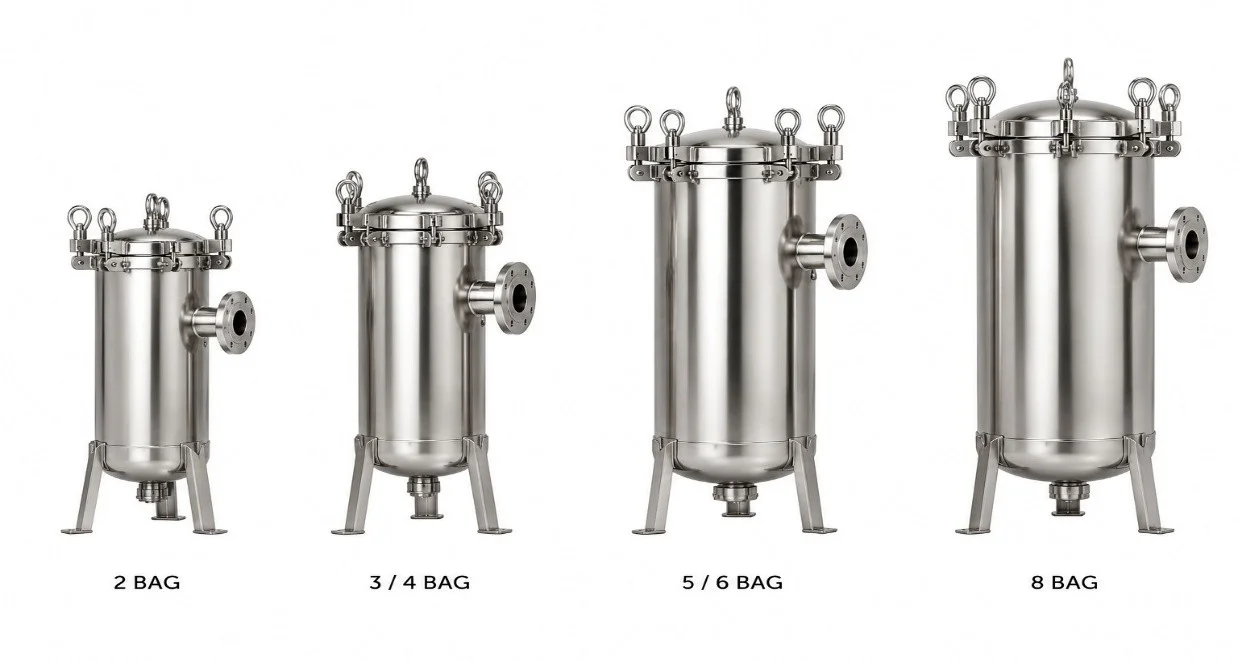

Industrial Bag Filter Housing

Constructions:
Industrial Bag Filter Housings are manufactured from high-quality materials to withstand demanding industrial conditions.



Main Components:

·        Housing Body (SS304 / SS316 / Carbon Steel)

·        Filter Bag Support Basket

·        Top Cover with Swing Bolt or Clamp Closure

·        Inlet & Outlet Connections

·        Vent and Drain Ports

·        Sealing Gasket (EPDM, Viton, PTFE, Nitrile)

·        Pressure Gauge Ports (Optional)

·        Leg Support Structure



Key Features

·        Robust Stainless-Steel Construction

·        High Dirt Holding Capacity

·        Low Pressure Drop

·        Easy Filter Bag Replacement

·        Leak-Proof Sealing Design

·        Corrosion Resistant Finish

·        Suitable for High Flow Rates

·        Available in Single and Multi-Bag Configurations

·        Compact and User-Friendly Design

·        Long Service Life

·        Customizable Inlet/Outlet Connections

·        Suitable for Continuous Industrial Operation

Ideal Applications

  • Water Treatment

    ·        Raw Water Filtration

    ·        Process Water Filtration

    ·        Wastewater Treatment

    Chemical Industry

    ·        Chemical Processing

    ·        Solvent Filtration

    ·        Resin Filtration

    Paints & Coatings

    ·        Paint Filtration

    ·        Ink Filtration

    ·        Coating Material Filtration

    Food & Beverage

    ·        Syrup Filtration

    ·        Edible Oil Filtration

    ·        Beverage Processing

    Pharmaceutical Industry

    ·        Bulk Chemical Filtration

    ·        Process Liquid Filtration

    Other Industries

    ·        Electroplating

    ·        Textile Processing

    ·        Adhesives Manufacturing

    ·        Lubricating Oils

    ·        Petrochemical Processing

Micron Range

Bag Filter Housings can accommodate filter bags with filtration ratings ranging from:

1 Micron to 200 Micron

Common Micron Ratings:

·        1 µm

·        5 µm

·        10 µm

·        25 µm

·        50 µm

·        100 µm

·        150 µm

·        200 µm



Compatible Bag Media:

·        Polypropylene (PP)

·        Polyester (PE)

·        Nylon Mesh

·        PTFE

·        Nomex

·        Stainless Steel Mesh



Available Configurations:

·        Single Bag Filter Housing

·        Multi-Bag Filter Housing

·        Side Entry Design

·        Top Entry Design



Parameter

Specification

Housing Material

SS304, SS316

Filter Bag Size

Size #1, Size #2, Size #3, Size #4

Micron Rating

1–200 Micron

Design Pressure

Up to 10 Bar

Operating Temperature

Up to 150°C (Depending on Bag Material)

Closure Type

Swing Bolt / Clamp Type

Connection Type

Flanged / BSP / NPT / TC

Surface Finish

Mirror / Matt / Electro Polished

Seal Material

EPDM, Viton, PTFE, Nitrile

Flow Rate

Up to 40 m³/hr (Single Bag)

Basket Material

SS304 / SS316

Vent & Drain

Standard Provision

Pressure Gauge

Optional

Housing Type

Top Entry / Side Entry

Bag Capacity

Single Bag / Multi-Bag




Industrial Bag Filter Housing
