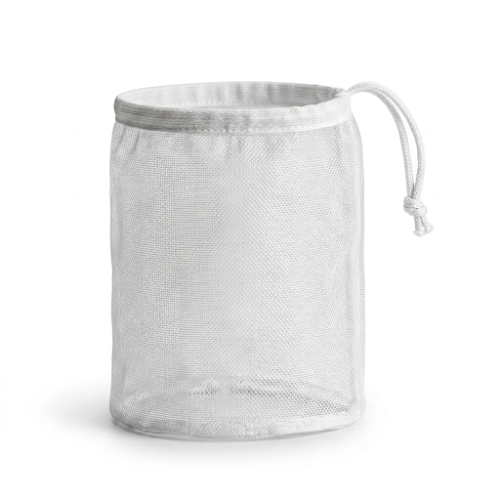

Nylon Filter Bag
Nylon filter bags are surface filtration bags made from monofilament nylon mesh, designed for precise particle retention and excellent strength. They are ideal for applications requiring accurate micron control and repeated cleaning.
Nylon Filter Bag
Construction
- Material: Monofilament Nylon Mesh
- Filtration Type: Surface filtration
- Seam Type: Stitched or welded
- Sealing Ring Options: Plastic (PP) ring / Galvanized steel ring / Stainless steel ring
- Design: Single-layer mesh construction
- Available Sizes:
- Standard Size 1 (7″ × 16″)
- Size 2 (7″ × 32″)
- Custom sizes available
Key Features
- High tensile strength
- Excellent abrasion resistance
- Precise micron retention
- Washable and reusable
- Low pressure drops
- Smooth surface for easy cleaning
- Good chemical compatibility
Ideal Applications
- Paints & coatings
- Inks and dyes
- Resin filtration
- Water treatment
- Chemical processing
- Food & beverage (FDA grade options available)
- Adhesives and solvents
Technical Specifications (Typical)
| Parameter | Specification |
|---|---|
| Material | Nylon (Monofilament Mesh) |
| Micron Rating | 1 – 500 µm |
| Max Operating Temperature | Up to 120°C |
| Max Differential Pressure | 2.5 bar |
| pH Compatibility | 3 – 11 |
| Flow Direction | Inside to Outside |
| Reusability | Washable (depending on application) |
Micron Range
Available Ratings:
- 20 µm
- 25 µm
- 30 µm
- 50 µm
- 60 µm
- 75 µm
- 100 µm
- 125 µm
- 135 µm
- 150 µm
- 200 µm
- 300 µm
- 350 µm
- 400 µm
- 450 µm
- 600 µm
- 750 µm
Typical Range:
- 20 – 750 microns
Provides precise and consistent pore opening.
