Polyester Sparkler Filter
A polyester sparkler filter is a pressure-type filtration
system that uses polyester filter media (cloth or pads)
mounted on multiple plates to achieve fine clarification
of liquids, allowing clean filtrate to pass while retaining
suspended particles.

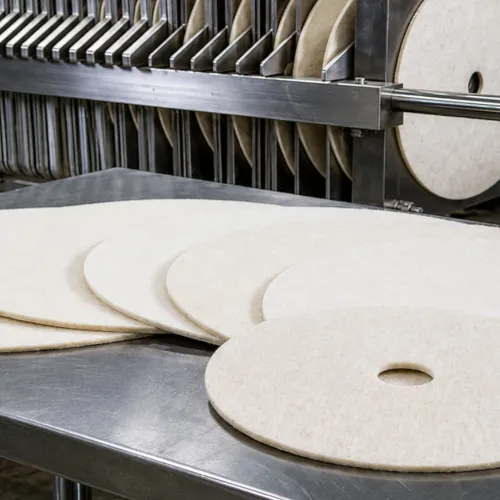

Polyester Sparkler Filter
Construction
- Housing / Vessel: Typically Stainless Steel (SS304/SS316) or MS
- Filter Plates (Discs): Circular plates arranged on a central shaft
- Filter Media: Polyester cloth or filter pads fitted on each plate
- Support Structure: Rigid frame for plate alignment
- Inlet & Outlet: For slurry entry and filtrate discharge
- Sealing System: Rubber/PTFE gaskets for leak-proof operation
- Pump: External pump to create filtration pressure
Key Features
- High mechanical strength and durability
- Good temperature resistance (better than PP)
- Abrasion-resistant (longer life in tough conditions)
- Stable filtration performance
- Suitable for continuous batch operations
- Good balance of clarity and flow rate
Ideal Applications
- Chemical and solvent filtration
- Pharmaceutical processing
- Food & beverage industry
- Dye, pigment & resin industries
- Paint and coating filtration (polishing stage)
- Medium to high temperature filtration
Micron Range
- Typically, 5 microns to 100 microns
- Depends on polyester fabric weave or filter pad grade
Technical Specifications
| Parameter | Specification |
|---|---|
| Filter Media | Polyester (PE cloth / pads) |
| MOC (Body) | SS304 / SS316 |
| Operating Pressure | 2 – 6 bar |
| Temperature Range | Up to 130–150°C |
| Filtration Area | 1 m² – 20+ m² |
| No. of Plates | 5 – 40 |
| Micron Rating | 5 – 100 microns |
| Flow Rate | 500 LPH – 20,000 LPH (approx.) |
| pH Range | ~4 – 9 (best in neutral conditions) |
