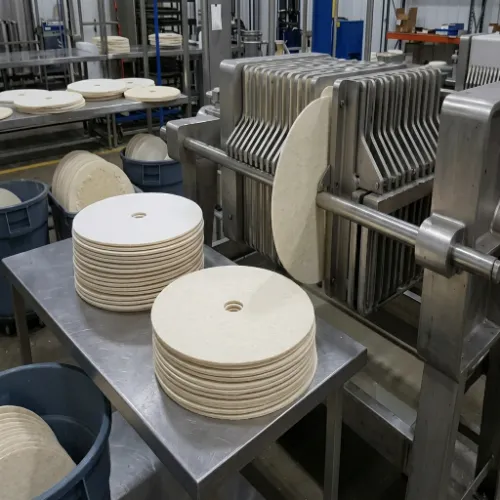

Polypropylene Sparkler Filter
A Polypropylene sparkler filter is a pressure-based
filtration system constructed using polypropylene
material, designed for fine clarification of liquids,
especially in corrosive chemical environments,
where it removes suspended impurities using filter
plates fitted with filter media.
Polypropylene Sparkler Filter
Construction
- Body / Housing: Made from Polypropylene (PP) for high chemical resistance
- Filter Plates (Discs): PP plates mounted on a central shaft
- Filter Media: Filter sheets, pads, or cloth placed on plates
- Support Structure: MS/SS frame for strength (in some models)
- Inlet & Outlet Connections: For slurry entry and filtrate exit
- Sealing System: PP-compatible gaskets to prevent leakage
- Pump Connection: External pump for pressure filtration
Key Features
- Excellent chemical resistance (acid & alkali)
- Corrosion-free body (ideal for harsh chemicals)
- Lightweight compared to SS filters
- Leak-proof and closed system
- Good clarity filtration (polishing stage)
- Low maintenance and long service life
Ideal Applications
- Chemical industries (acids, alkalis, solvents)
- Electroplating and surface treatment
- Pharmaceuticals (non-sterile processes)
- Dye & pigment industries
- Effluent treatment (chemical filtration)
- Fertilizer and specialty chemical plants
Micron Range
- Typically, 0.5 microns to 50 microns
- Depends on filter sheet / media used
Technical Specifications
| Parameter | Specification |
|---|---|
| Material of Construction (MOC) | Polypropylene (PP) |
| Operating Pressure | 2 – 4 bar |
| Temperature Range | Up to 70–80°C |
| Filtration Area | 0.5 m² – 10 m² (depends on model) |
| No. of Plates | 5 – 25 |
| Micron Rating | 0.5 – 50 microns |
| Flow Rate | 200 LPH – 10,000 LPH (approx.) |
| Sealing | PP / Rubber gaskets |
