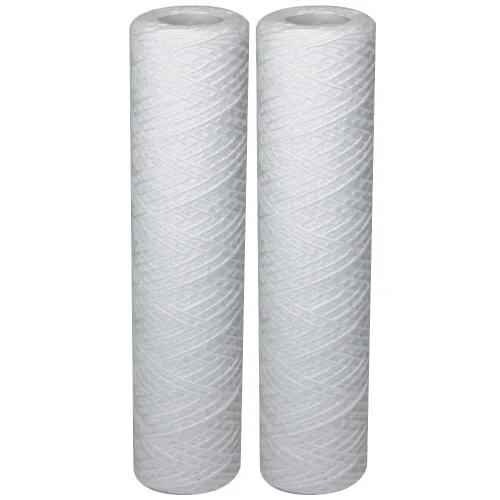

Wound Filter Cartridge
Wound Cartridge Filter is a depth-type filtration element manufactured by precision winding of polypropylene (PP) or cotton yarn over a rigid core. It effectively removes suspended particles, sand, rust, silt, and other impurities from liquids, making it ideal for industrial and commercial filtration systems.
Wound Slim Type Cartridge
Construction
- Media: Polypropylene (PP) / Cotton
- Core: Polypropylene (PP)
- Structure: Graded density (outer loose winding, inner tight winding)
- End Type: DOE (Double Open End)
- Design: Slim type (Standard 2.5″ OD)
Micron Range
Available in:
- 1 µm
- 5 µm
- 10 µm
- 25 µm
- 50 µm
- 75 µm
- 100 µm
Key Features
- High dirt holding capacity
- Cost-effective filtration solution
- Suitable for domestic & light industrial use
- Good chemical resistance (PP type)
- Easy installation & replacement
- Compatible with standard slim housings
Technical Specifications (Typical)
- Outer Diameter: 2.5 inch (63 mm approx.)
- Inner Diameter: 28–30 mm
- Length Options: 10”, 20”, 30”, 40”
- Maximum Operating Temperature: 60–80°C (PP type)
- Maximum Differential Pressure: 2–3 bar
- Recommended Change-Out Pressure: 1–1.5 bar
Technical Specifications
- Outer Diameter: 2.5 inch (63 mm approx.)
- Inner Diameter: 28–30 mm
- Length Options: 10”, 20”, 30”, 40”
- Maximum Operating Temperature:
- PP: 60–80°C
- PES/PTFE: up to 120°C
- Maximum Differential Pressure: 3–4 bar
- Recommended Change-Out Pressure: 1.5–2 bar
Wound Jumbo Type Cartridge
Construction
- Media: Polypropylene (PP) / Cotton
- Core: Polypropylene (PP)
- Structure: Graded density (coarse outer layer, fine inner layer)
- End Type: DOE (Double Open End)
- Design: Jumbo type (Big Blue housing compatible – 4.5″ OD)
Micron Range
- 1 µm
- 5 µm
- 10 µm
- 25 µm
- 50 µm
- 75 µm
- 100 µm
Key Features
- Higher flow rate compared to slim type
- Very high dirt holding capacity
- Suitable for heavy sediment load
- Reduced cartridge replacement frequency
- Excellent for large housing systems
- Cost-effective for bulk water filtration
Ideal Applications
- Industrial water treatment plants
- Commercial RO systems
- Borewell / groundwater filtration
- Pre-filtration before softener or membrane
- Food & beverage processing
- Chemical process water filtration
Technical Specifications (Typical)
- Outer Diameter: 4.5 inch (115 mm approx.)
- Inner Diameter: 28–30 mm
- Length Options: 10”, 20”, 30”, 40”
- Maximum Operating Temperature: 60–80°C (PP type)
- Maximum Differential Pressure: 2–3 bar
- Recommended Change-Out Pressure: 1–1.5 bar
