Cotton Filter Press Media
Cotton filter press media is a natural woven fabric made from cotton fibers, used in filter press systems for
solid-liquid separation where liquid passes through the fabric while solid particles are retained to form a filter
cake.

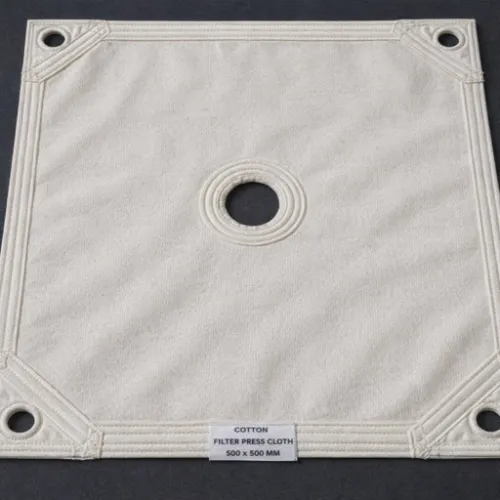

Cotton Filter Press Media
Construction
- Made from 100% natural cotton yarn
- Typically spun yarn (multifilament nature)
- Woven in plain or twill weave patterns
- Can be bleached or unbleached depending on application
- Finished with stitched edges, reinforced borders, and feed holes (center/corner type)
- Supplied as ready-made cloth pieces as per plate size
Key Features
- Natural and eco-friendly material
- Good absorption properties
- Suitable for low-temperature filtration
- Provides good initial clarity in filtration
- Cost-effective for specific applications
- Easy to handle and dispose
Ideal Applications
- Food & beverage (traditional filtration)
- Edible oil filtration
- Sugar and starch processing
- Pharmaceutical (specific low-temp processes)
- Herbal and natural product filtration
- Light-duty filtration applications
Micron Range
- Typically ranges from 10 microns to 100 microns
- Suitable for medium filtration applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Cotton (Natural Fiber) |
| Operating Temperature | Up to 80–90°C |
| pH Range | ~5 – 8 (best in neutral conditions) |
| Fabric Type | Spun yarn (multifilament) |
| Weave Type | Plain / Twill |
| Air Permeability | Medium |
| Thickness | ~0.6 mm to 2.0 mm |
| Weight | 250 – 700 GSM (approx.) |
