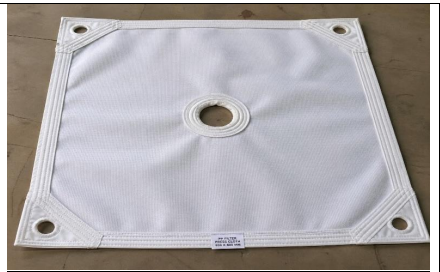

Polypropylene Filter Press Media
Polypropylene filter press media is a synthetic woven fabric made from polypropylene fibers, used in filter
press machines to separate solids from liquids by allowing filtrate to pass through while retaining solid
particles on its surface.
Polypropylene Filter Press Media
Construction
- Made from 100% polypropylene multifilament or monofilament yarn
- Woven in patterns like plain, twill, or satin weave
- Heat-set and calendared for dimensional stability
- Designed with stitched edges, reinforced corners, and center/corner feed holes
- Available in ready-to-use cloth pieces as per plate size
Key Features
- Excellent chemical resistance (acid & alkali)
- Low moisture absorption
- Good cake release properties
- Lightweight and durable
- High filtration efficiency
- Cost-effective compared to other materials
Ideal Applications
- Paint & coating industry
- Chemical & resin processing
- Pharmaceuticals
- Food & beverage (non-critical filtration)
- Wastewater & effluent treatment plants (ETP/STP)
- Mining and mineral processing
Micron Range
- Typically ranges from 1 micron to 200 microns
- Selection depends on particle size and filtration requirement
Technical Specifications (Typical)
| Parameter | Specification |
|---|---|
| Material | Polypropylene (PP) |
| Operating Temperature | Up to 90–100°C |
| pH Range | 1 – 14 (excellent resistance) |
| Fabric Type | Multifilament / Monofilament |
| Weave Type | Plain / Twill / Satin |
| Air Permeability | Medium to high (depends on weave) |
| Thickness | ~0.5 mm to 2.5 mm |
| Weight | 300 – 800 GSM (approx.) |
