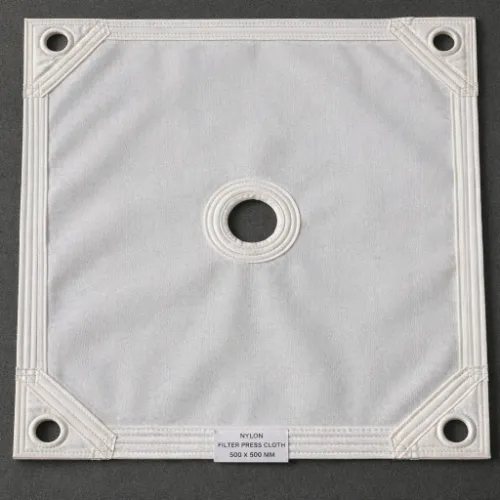

Nylon Filter Press Media
Nylon filter press media is a synthetic woven fabric made from polyamide (nylon) fibers, used in filter press
systems for efficient solid-liquid separation by allowing liquid to pass through while retaining fine and coarse
particles on the surface.
Nylon Filter Press Media
Construction
- Made from 100% nylon (polyamide) yarn
- Available in monofilament or multifilament construction
- Woven in plain, twill, or satin weave patterns
- Heat-set for stability and durability
- Finished with reinforced edges, stitching, and feed holes (center/corner type)
- Supplied as customized ready-to-use filter cloth pieces
Key Features
- Very high mechanical strength
- Excellent abrasion resistance (ideal for rough slurry)
- Good flexibility and elasticity
- Smooth surface for better cake release
- Performs well in alkaline conditions
- Long service life in demanding applications
Ideal Applications
- Mining and mineral processing
- Ceramics and clay industries
- Metallurgy and metal finishing
- Chemical processing (especially alkaline media)
- Sludge dewatering applications
- Heavy-duty industrial filtration
Micron Range
- Typically ranges from 10 microns to 300 microns
- Suitable for coarse to medium filtration applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Material | Nylon (Polyamide) |
| Operating Temperature | Up to 120–140°C |
| pH Range | ~7 – 14 (best in alkaline conditions) |
| Fabric Type | Monofilament / Multifilament |
| Weave Type | Plain / Twill / Satin |
| Air Permeability | Medium to high |
| Thickness | ~0.5 mm to 2.2 mm |
| Weight | 300 – 850 GSM (approx.) |
